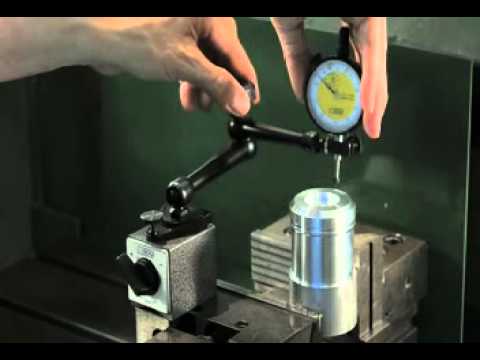

The easiest magnetic base to set into position.
The Central locking mechanism unlocks & locks the arm in 3 places allowing for an efficient, fast & easy set up of gauges into the required position.
These models have a unique fine adjustment mechanism which is placed on the magnetic base, allowing the hand to rest on the base rather than the clamp of the indicator.
Zero setting becomes faster than with any other mechanism

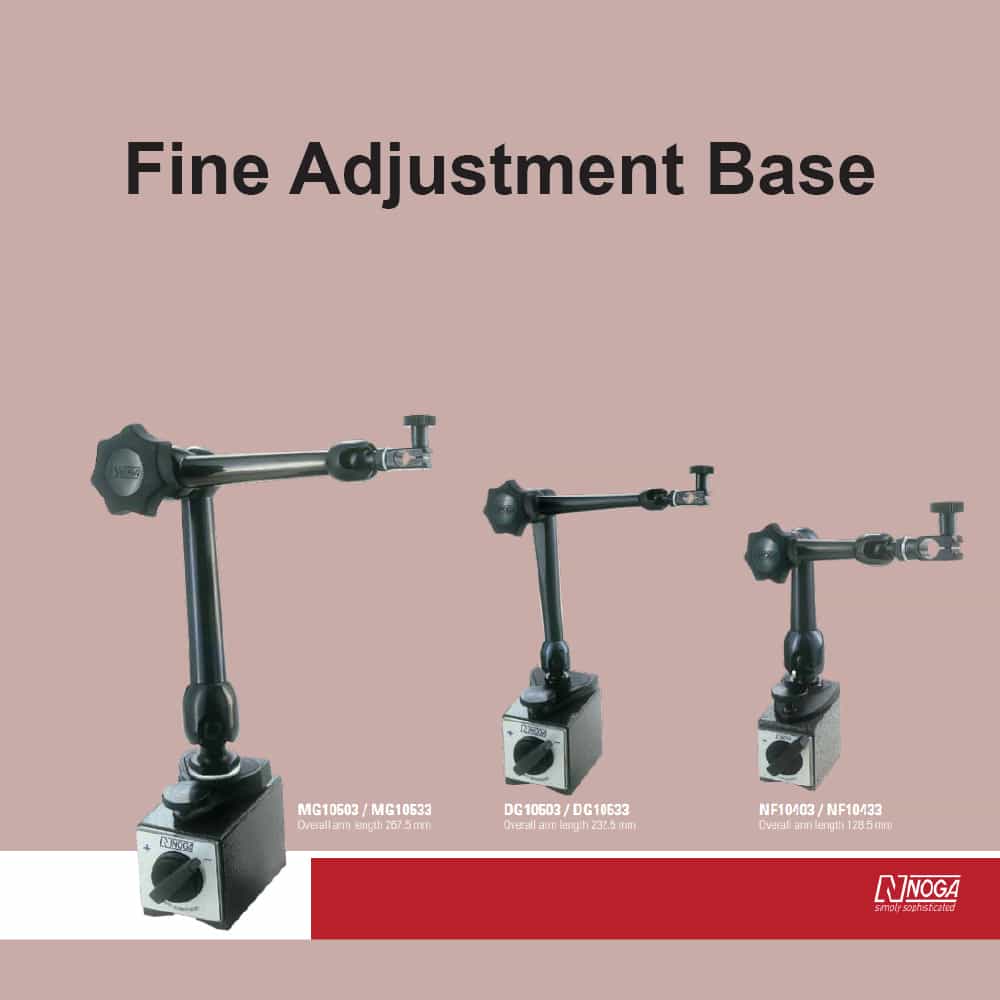

| SKU | Description |
|---|---|
| NF10403 | Dial Gauge Holder with Articulated Arm and Fine Adjustment at the base Arm is 56 & 51mm Clamp is 8mm Magnet Force is 320N & dimensions 30mm x 40mm x 35mm |
| DG10503 | Dial Gauge Holder with Articulated Arm and Fine Adjustment at the base Arm is 110 & 101mm Clamp is 8mm Magnet Force is 800N & dimensions 50mm x 60mm x 55mm |
| MG10503 | Dial Gauge Holder with Articulated Arm and Fine Adjustment at the base Arm is 133 & 113mm Clamp 8mm Magnet Force is 800N Force & dimensions 50mm x 60mm x 55mm |
| NF10433 | Dial Gauge Holder with Articulated Arm and Fine Adjustment at the base Arm is 56 & 51mm Clamp is 3/8" Magnet Force is 320N & dimensions 30mm x 40mm x 35mm |
| DG10533 | Dial Gauge Holder with Articulated Arm and Fine Adjustment at the base Arm is 110 & 101mm Clamp is 3/8" Magnet Force is 800N & dimensions 50mm x 60mm x 55mm |
| MG10533 | Dial Gauge Holder with Articulated Arm and Fine Adjustment at the base Arm is 133 & 113mm Clamp 3/8" Magnet Force is 800N Force & dimensions 50mm x 60mm x 55mm |
| FA1100 | Top Attachment with no fine adjustment M6 thread with 8mm Clamp |
| FA1120 | Top Attachment with no fine adjustment M6 thread with 3/8" Clamp |
View our range in our Latest Catalogue.
