Articulated Arm Holders with Fine Adjustment at the Top

Noga Articulated Arm Holders with Fine Adjustment

The easiest magnetic base to set into position.

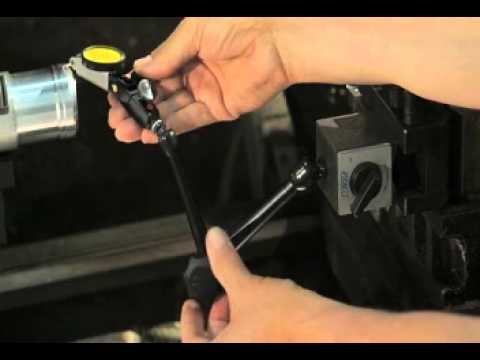

The Central locking mechanism unlocks & locks the arm in 3 places allowing for an efficient, fast & easy set up of gauges into the required position.
The Fine adjustment is on the top attachment, with a universal swivel clamp that will hold 6mm, 8mm, 3/8 and dovetail.
Models are available with the Fine Adjustment on the bottom, and also Double Fine Adjustment on the Top & Bottom

Spare Parts: Noga Holding System Spare Parts
Related Technical Support: Which types of indicators can be held by Noga holders?

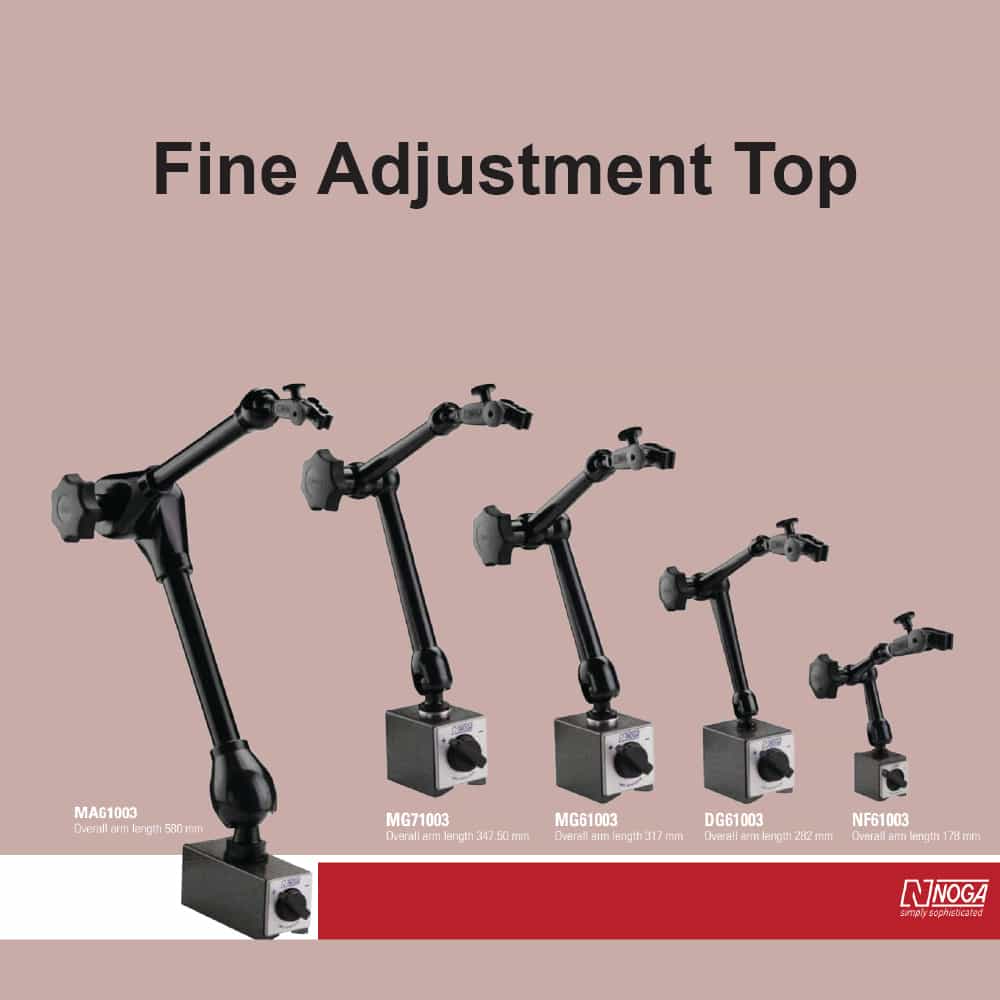

SKU	Description
NF61003	NOGA Dial Gauge Holder with Articulated Arm and Fine Adjustment on the top attachment Arm is 56 & 51mm Magnet Force is 320N & dimensions 30mm x 40mm x 35mm
DG61003	NOGA Dial Gauge Holder with Articulated Arm and Fine Adjustment on the top attachment Arm is 110 & 101mm Magnet Force is 800N & dimensions 50mm x 60mm x 55mm
MG61003	NOGA Dial Gauge Holder with Articulated Arm and Fine Adjustment on the top attachment Arm is 133 & 113mm Magnet Force is 800N Force & dimensions 50mm x 60mm x 55mm
MG71003	Dial Gauge Holder with Articulated Arm and Fine Adjustment on the top attachment Arm is 163.5 & 113mm Clamp Magnet Force is 800N Force & dimensions 50mm x 60mm x 55mm
MA61003	Dial Gauge Holder with Articulated Arm and Fine Adjustment on the top attachment Arm is 286.5 & 222.5mm Clamp Magnet Force is 1300N Force & dimensions 50mm x 120mm x 55mm
NF60103	Arm Only [No Magnet] Top Arm 51mm Bottom Arm 56mm
DG60103	Arm Only [No Magnet] Top Arm 101mm Bottom Arm 110mm
MG60103	Arm Only [No Magnet] Top Arm 113mm Bottom Arm 133mm
MG70103	Arm Only [No Magnet] Top Arm 113mm Bottom Arm 163.5mm
MA60103	Arm Only [No Magnet] Top Arm 222.5mm Bottom Arm 286.5mm
FA1500	Top Attachment only With Fine Adjustment [Standard on these Holders] M6 thread Holds 3/8" 6mm 8mm and Dovetail
FA1100	Top Attachment with no fine adjustment M6 thread with 8mm Clamp
