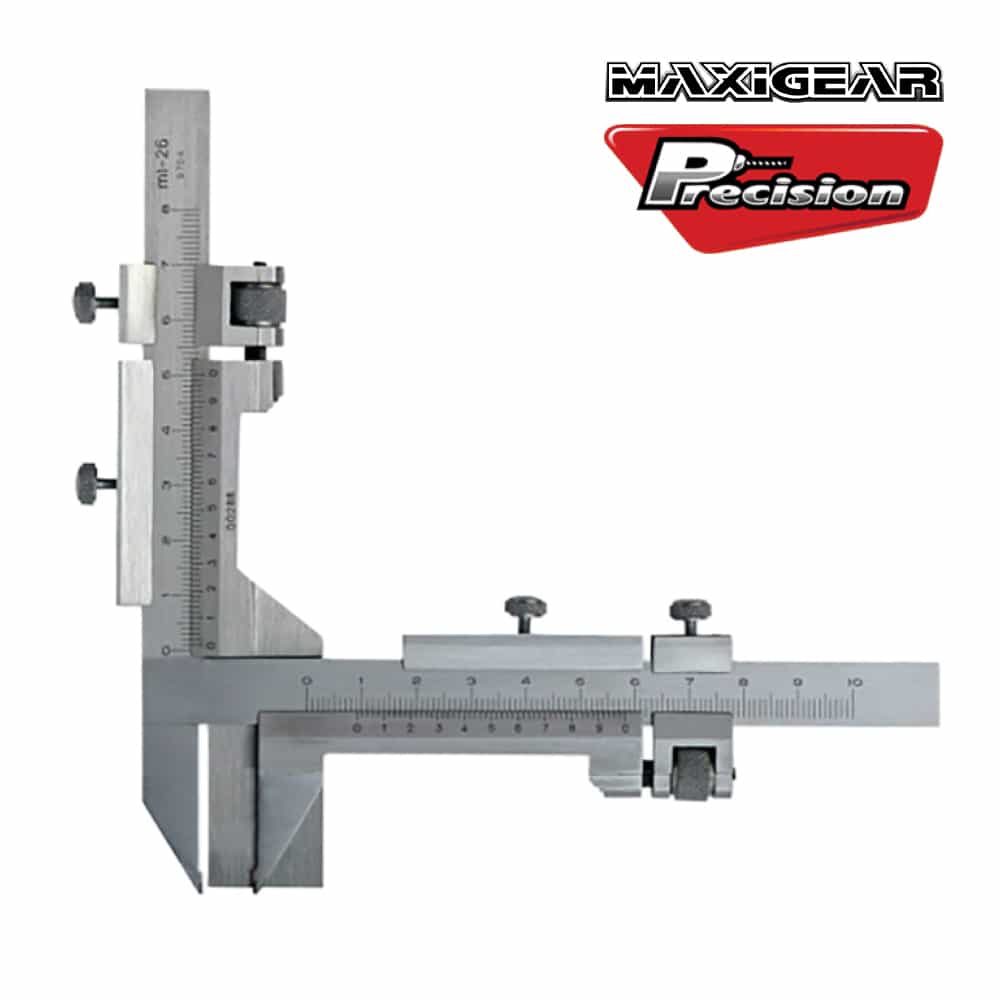

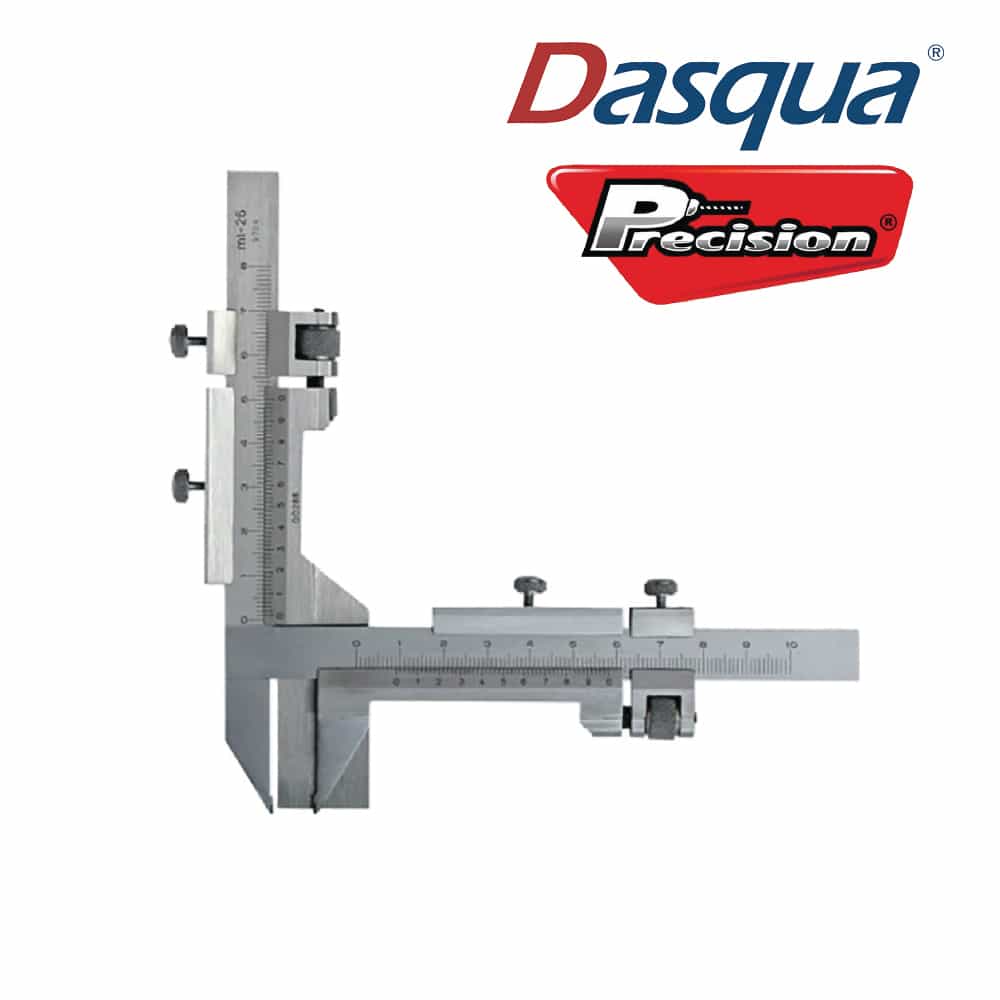

Gear Tooth Vernier Calipers

Vertical scale measures the depth of the teeth from the top of the pitch line.

Horizontal scale is used to measure the Chordal Thickness of the gear tooth.

The gear does not have to be removed from the machine.
