Introducing Ultimate Back:

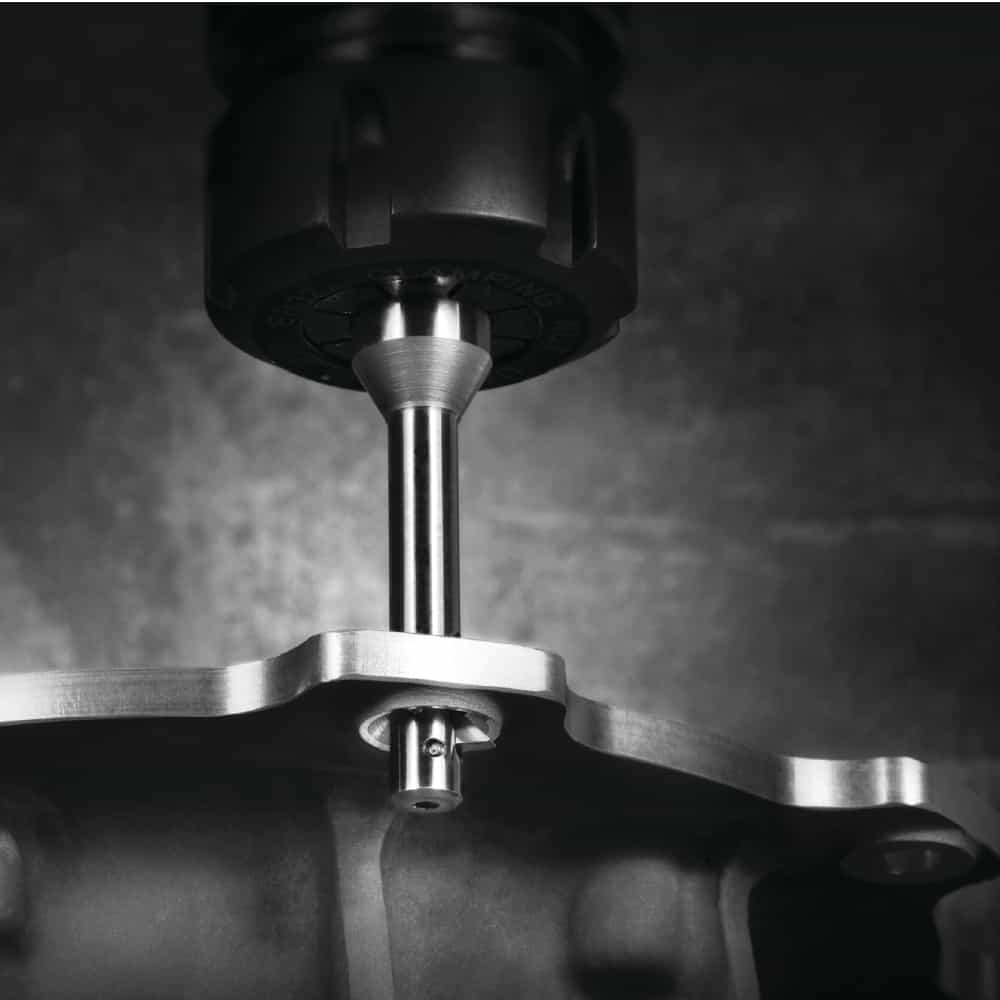

The Ultimate Back line brings together the innovative UX tool-holders and USPOT/UCHAMF inserts to redefine machining precision. Featuring a patented hydraulic mechanism that ingeniously uses the machine’s coolant liquid, this system delivers exceptional control over insert movement. The result? Unparalleled accuracy, repeatability, and streamlined operations for back counterboring, back countersinking, and back spot-facing tasks.
With its advanced engineering, Ultimate Back eliminates the need for workpiece rotation, effortlessly performing operations in a single pass while significantly boosting productivity and efficiency.
Highlights of Ultimate Back
- UX Tool-Holders with Hydraulic Precision: The UX tool-holders feature a hydraulic mechanism powered by coolant pressure, ensuring smooth, accurate, and repeatable insert movement.
- USPOT and UCHAMF Inserts: Designed to handle specific machining needs, these inserts deliver outstanding results in back spot-facing, back counterboring, and back countersinking operations.
- Single-Pass Efficiency: Eliminate workpiece rotation and achieve precise machining in one seamless pass.
- Industry-Grade Reliability: Engineered to meet the rigorous demands of aerospace, automotive, medical, and electronics industries.
- Time and Cost Savings: Reduced cycle times and optimized operations ensure significant productivity gains.
Benefits of Ultimate Back
- Efficient Single Operation: Perform chamfering and counterboring through holes in one pass without rotating the workpiece.
- Customizable Solutions: UX tool-holders support tailored configurations with USPOT and UCHAMF inserts, offering options for coatings, chip-formers, corner radii, and more.
- Innovative Hydraulic Control: UX tool-holders provide precise and consistent operation while simplifying insert replacement.
- Superior Chip Management: Prevent interruptions with excellent chip control for smooth and efficient machining.
- Cost-Effective for All Scales: From small-scale projects to high-volume production, this system delivers exceptional value.
- Automation-Ready Design: Seamlessly integrates into automated manufacturing systems for maximum efficiency.
- Coolant-Driven Mechanism: Operates smoothly with internal coolant, air or emulsion control (minimum 6 bar / 90 PSI), ensuring consistent results.
- Pilot-Hole Protection: The protective insert design safeguards the integrity of the pilot hole during pass-through operations.
- Versatile Applications: UX tool-holders are compatible with a wide range of USPOT and UCHAMF inserts, making them suitable for diverse machining tasks.
- Wide Range of Sizes: The UX tool-holders are available in diameters from Ø8 mm to Ø25 mm (.315-.984”) with various chamfer angles and spotface diameters.
Why Ultimate Back Stands Out
The Ultimate Back system combines the precision of UX tool-holders with the versatility of USPOT and UCHAMF inserts to deliver unparalleled performance. Its innovative design optimizes machining processes, reduces cycle times, and achieves flawless results in high-demand industries.
Whether you’re working in aerospace, automotive, medical, or electronics sectors, Ultimate Back is the ultimate choice for back spot-facing, back counterboring, and back countersinking operations.
